Purpose:
intended for detection, classification and identification of surface moving targets as well as low-speed low-flying air targets, radiomonitoring, radiocapture, radio countermesures, target pointingwith the aim to provide performance of tasks on security.
Description:

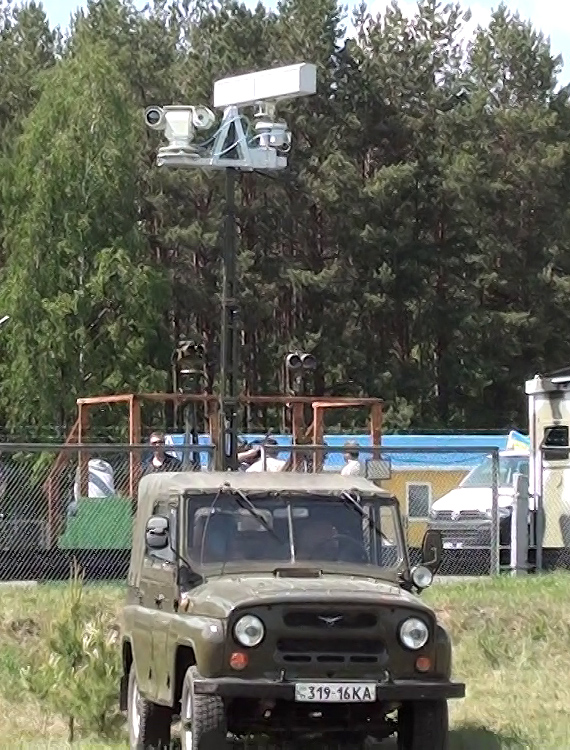

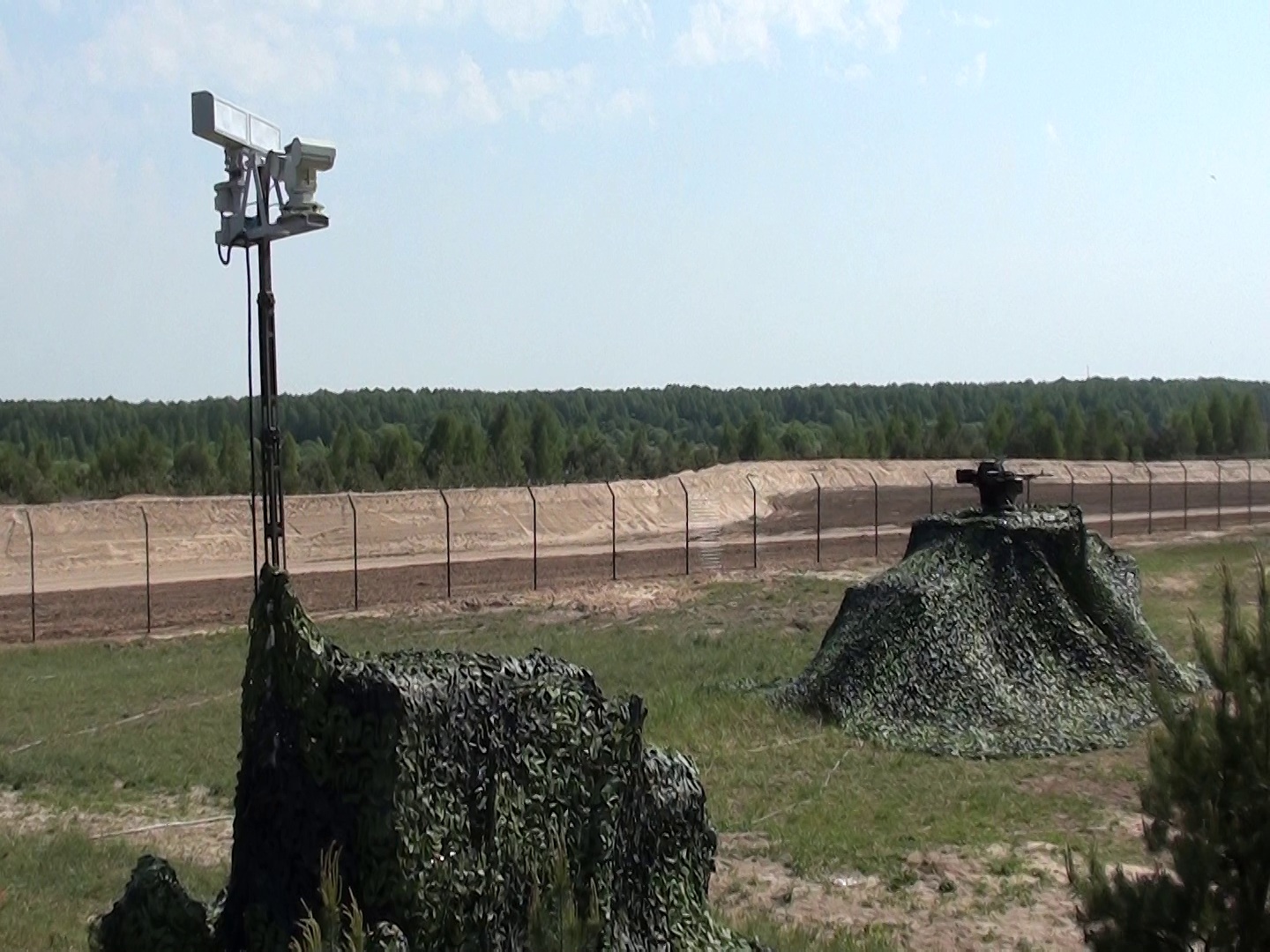

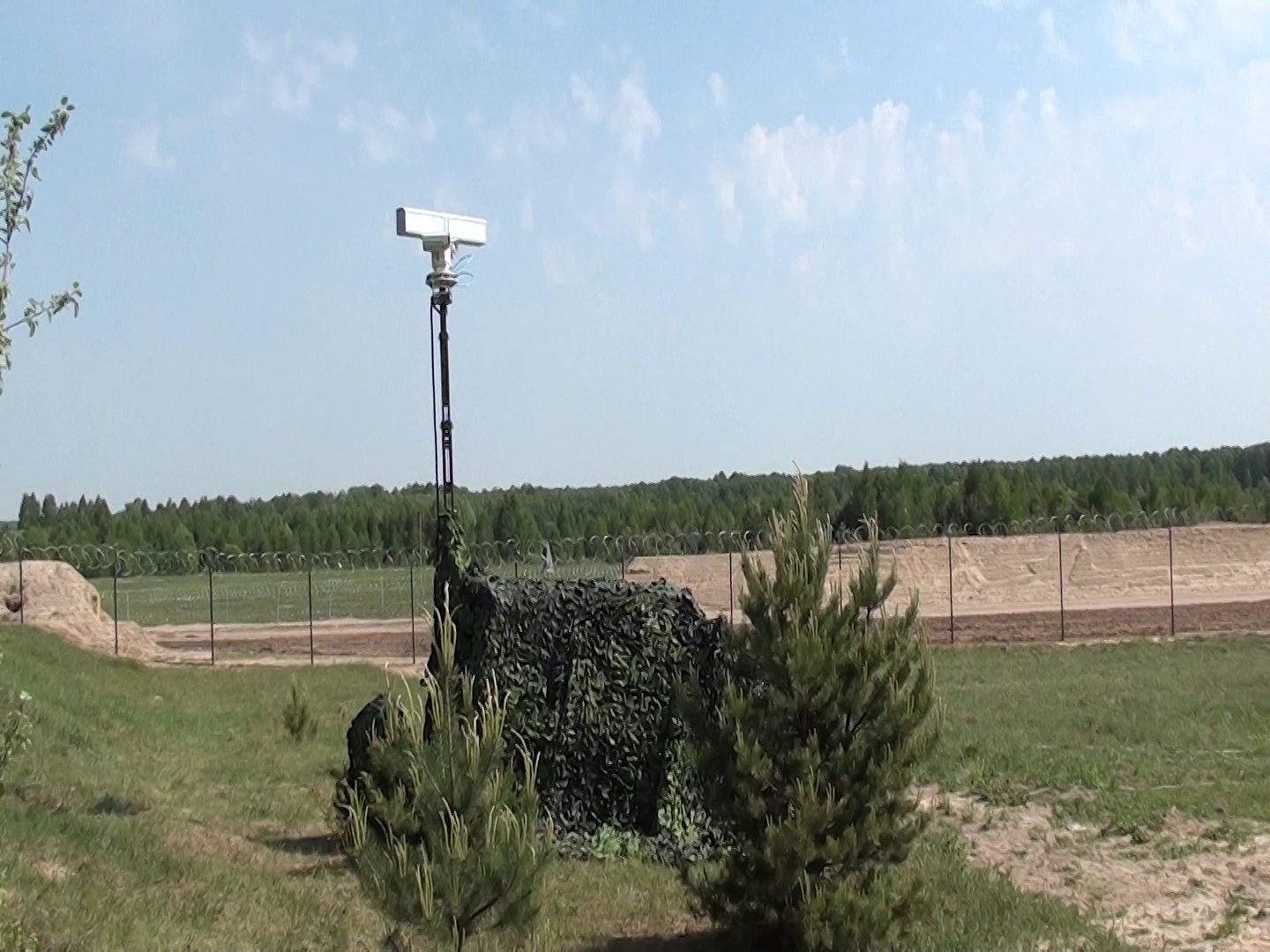

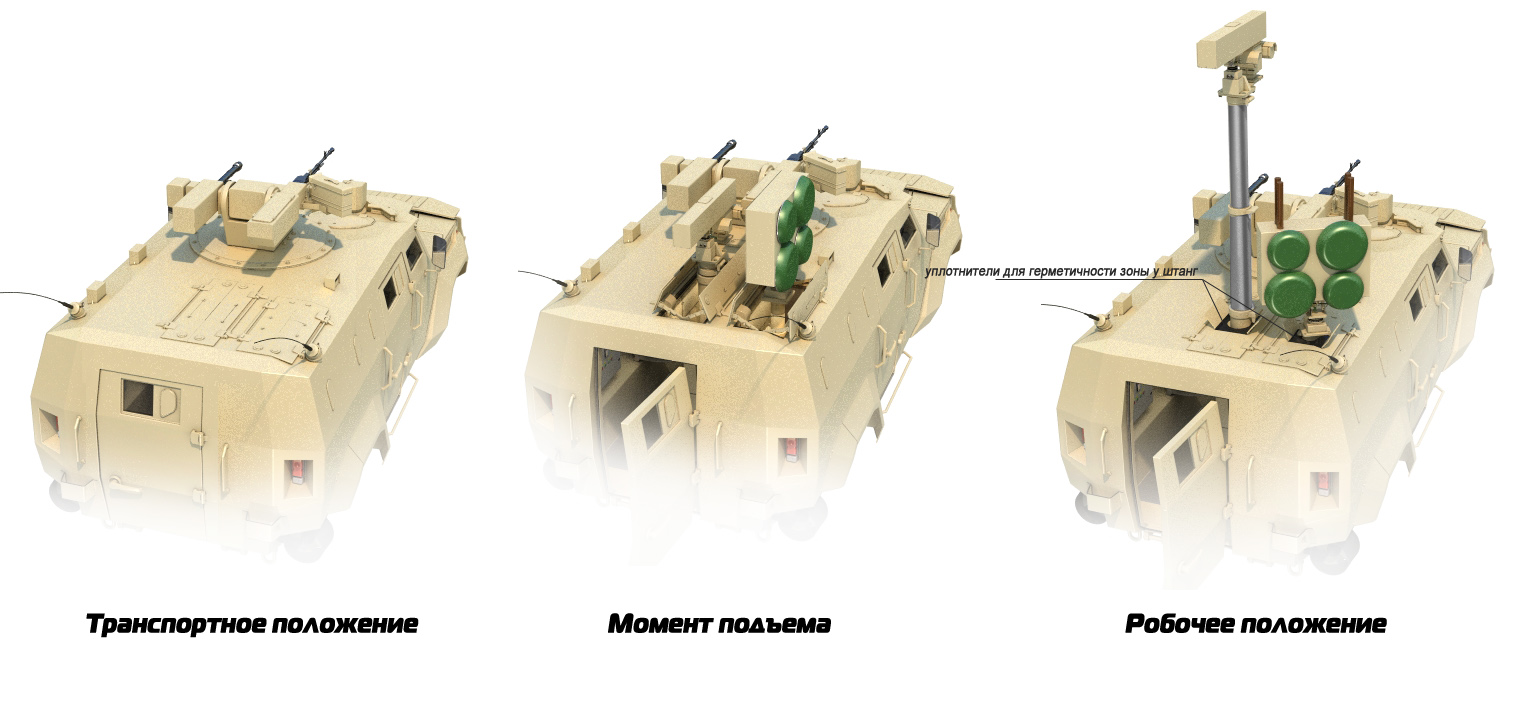

Mobile complex of surface recognition and ECM “JAB”
Complex provides:

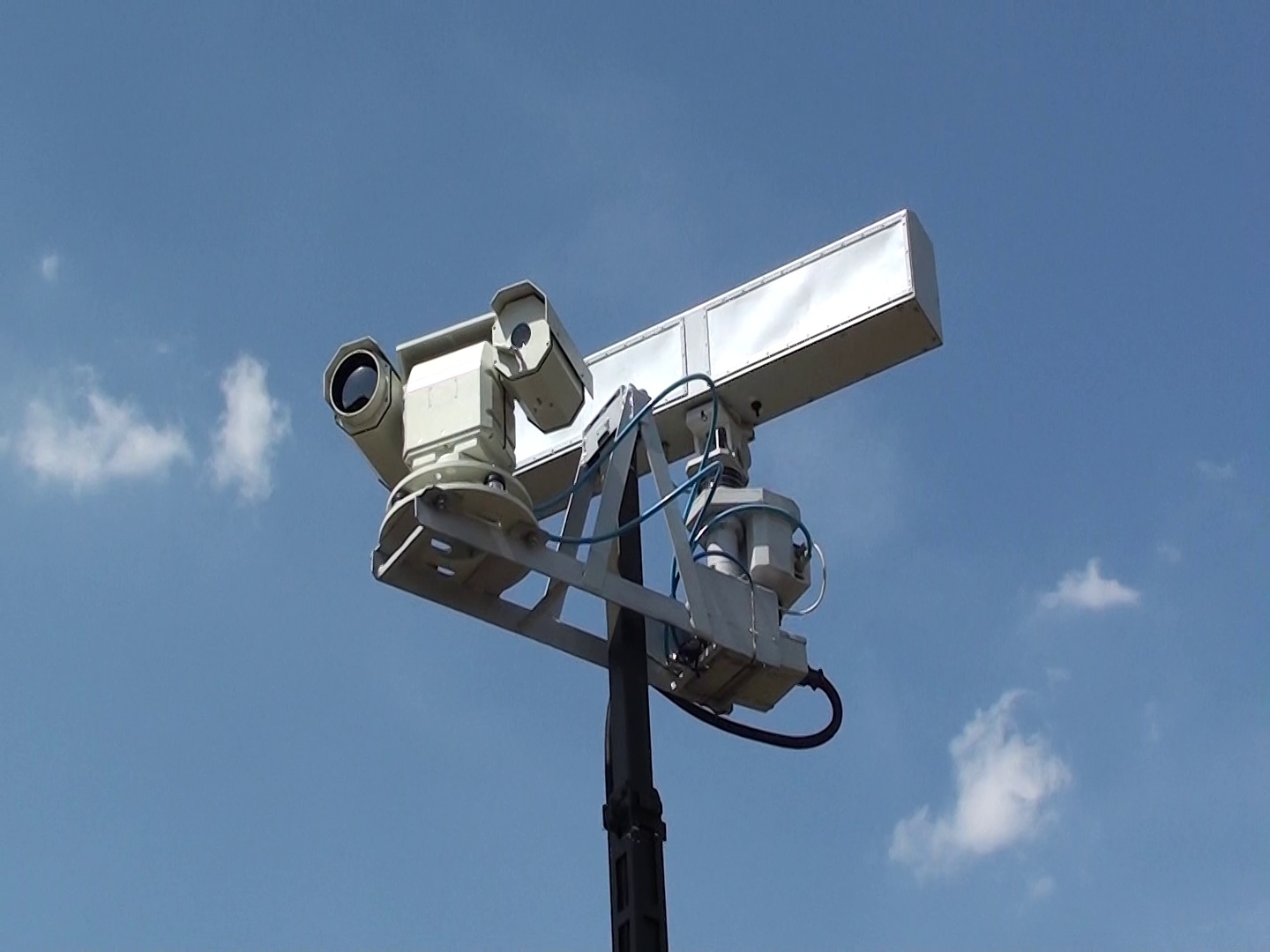

- automatic detection (with radar) and receiving detail information (with visual channel) about surface moving targets geographically referenced and with output of the information to command center;
- automatic affixment of the complex on the terrain with the help of satellite navigation systems; calculation and record route traffic at PC;
- detection of communication systems (including cellular, sattelite, relay, tranc communicatios), radio means (including short range radars, fire control systems, control and telemetry transmission systems);
- supression of communication sistems, radio means, satellite navigation receivers, radio controlled bobms.
Technical details:
|
Total transmitted power of the jammer
|
up to 1300 W
|
|
Quantity of jammer sub-channels
|
up to 14
|
|
Jammer frequency bandwidth
|
(20-2500) MHz (up to 6000 MHz - option)
|
|
TV channel
|
36х
|
|
Navigation systems suppression
|
GPS, GLONASS, GPS+GLONASS
|
|
- vehicle
|
6,6 km.
|
|
Radar detection range:
|
|
|
- person
|
3 km.
|
|
- vehicle
|
6 km.
|
|
IR channel detection range:
|
|
|
- person
|
2,4 km.
|
|
Operating temperature
|
-20...+50 С
|
|
Options
|
Radio capture equipment, remote workplace, UAV, signalling complex, communication and data exchange with command center
|
|
